REFERENCES
SIFTS THROUGH 99% OF ALL LOOSE MATERIALS
-
Asphaltfrom 70 - to 90 t/h from 54 - to 69 m³/h -
Compostfrom 12 - to 20 t/hfrom 20 - to 33 m³/h -

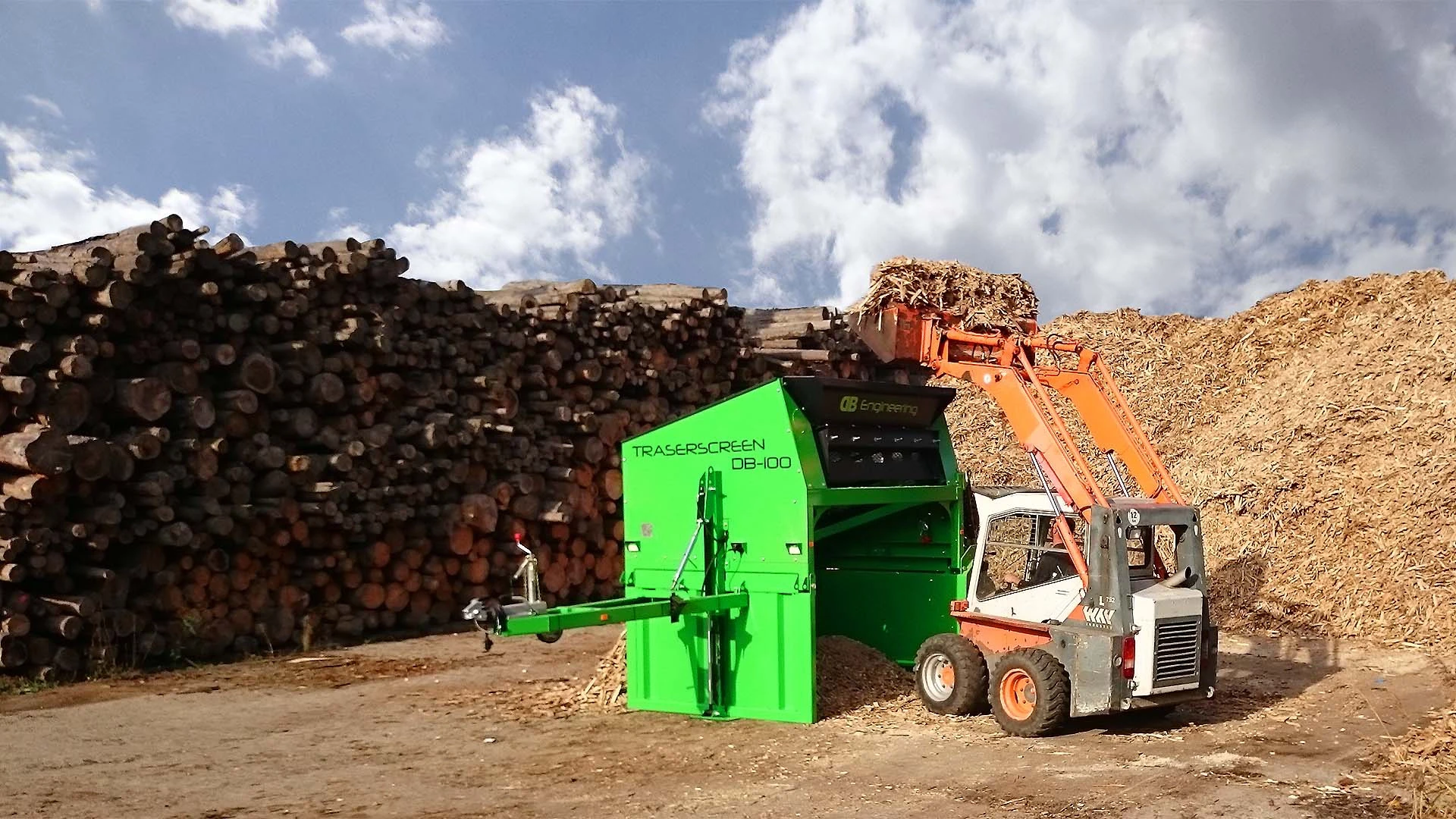

Wood chipsfrom 12 - to 17 t/hfrom 48 - to 68 m³/h -
Earthfrom 35 - to 55 t/hfrom 70 - to 110 m³/h -
Stonefrom 70 - to 110 t/hfrom 39 - to 61 m³/h -
Cornfrom 30 - to 45 t/hfrom 38 - to 56 m³/h -
Crushed rockfrom 80 - to 120 t/hfrom 32 - to 48 m³/h -
Gravelfrom 90 - to 120 t/hfrom 60 - to 80 m³/h -
Coalfrom 20 - to 50 t/hfrom 17 - to 42 m³/h -
Shell casingsfrom 15 - to 55 t/hfrom 42 - to max of 153 m³/h -
Sandfrom 60 - to 90 t/hfrom 34 - to 51 m³/h -
Every other loose material
MACHINE DEVELOPMENT
July 2005 – Prototype
Designed and manufactured first concept of TS DB-100.
April 2007 – Mk. II

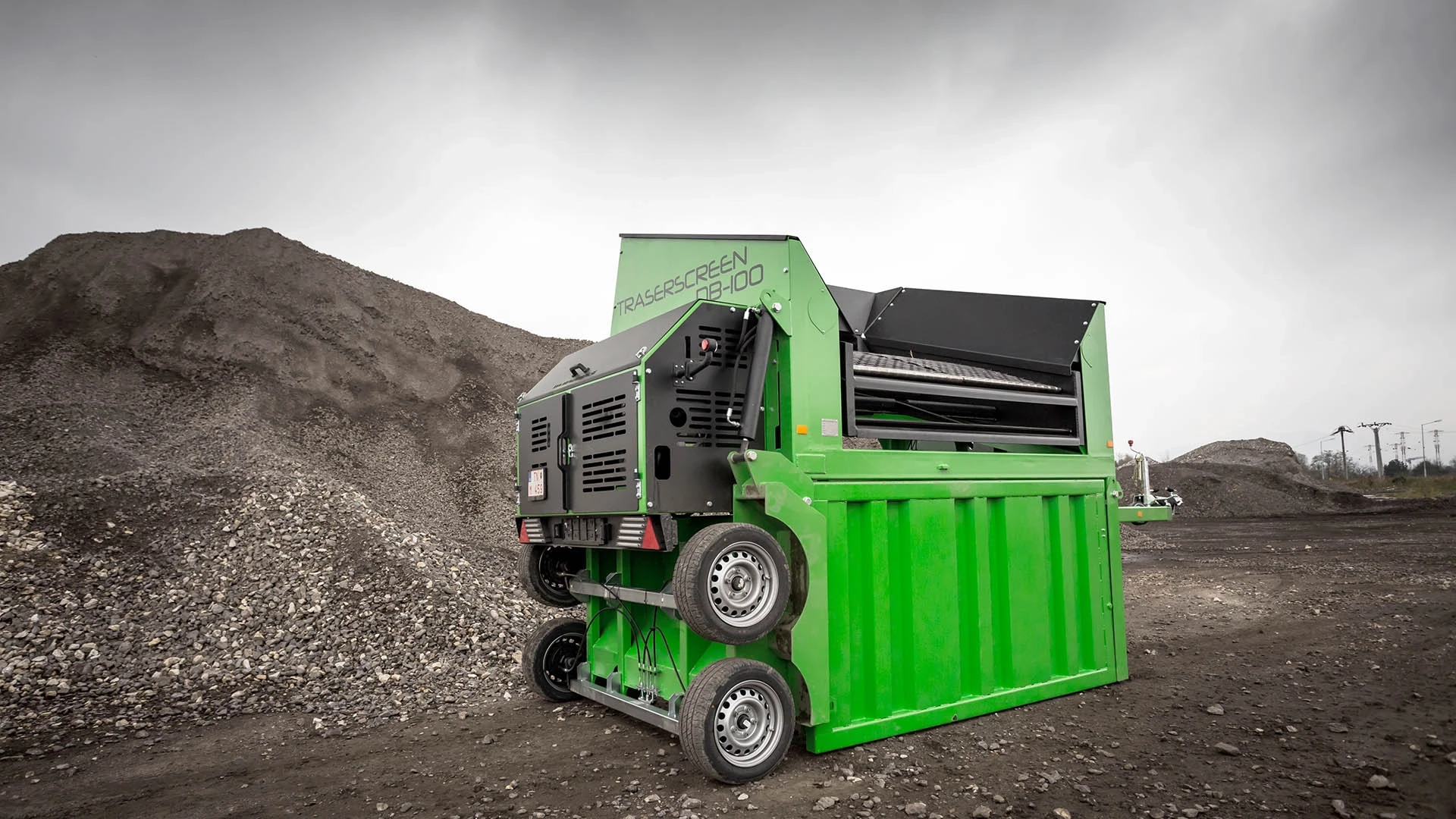

Fully mobile version with reclinable chassis.
Ferbruary 2008 – Mk. III
Fully mobile version with enhanced chassis.
August 2008
First machine with tracked chassis and conveyor belt.
November 2008 - Mk. IV
Additional upgrades based on customer feedback.
October 2011 – Mk. V
Modified frame, new shafts and new color design.
March 2012 – Mk. I
First mobile conveyor belt – PC DB-80 offered as accessory to TS DB-100.
TRULY MOBILE SCREENER

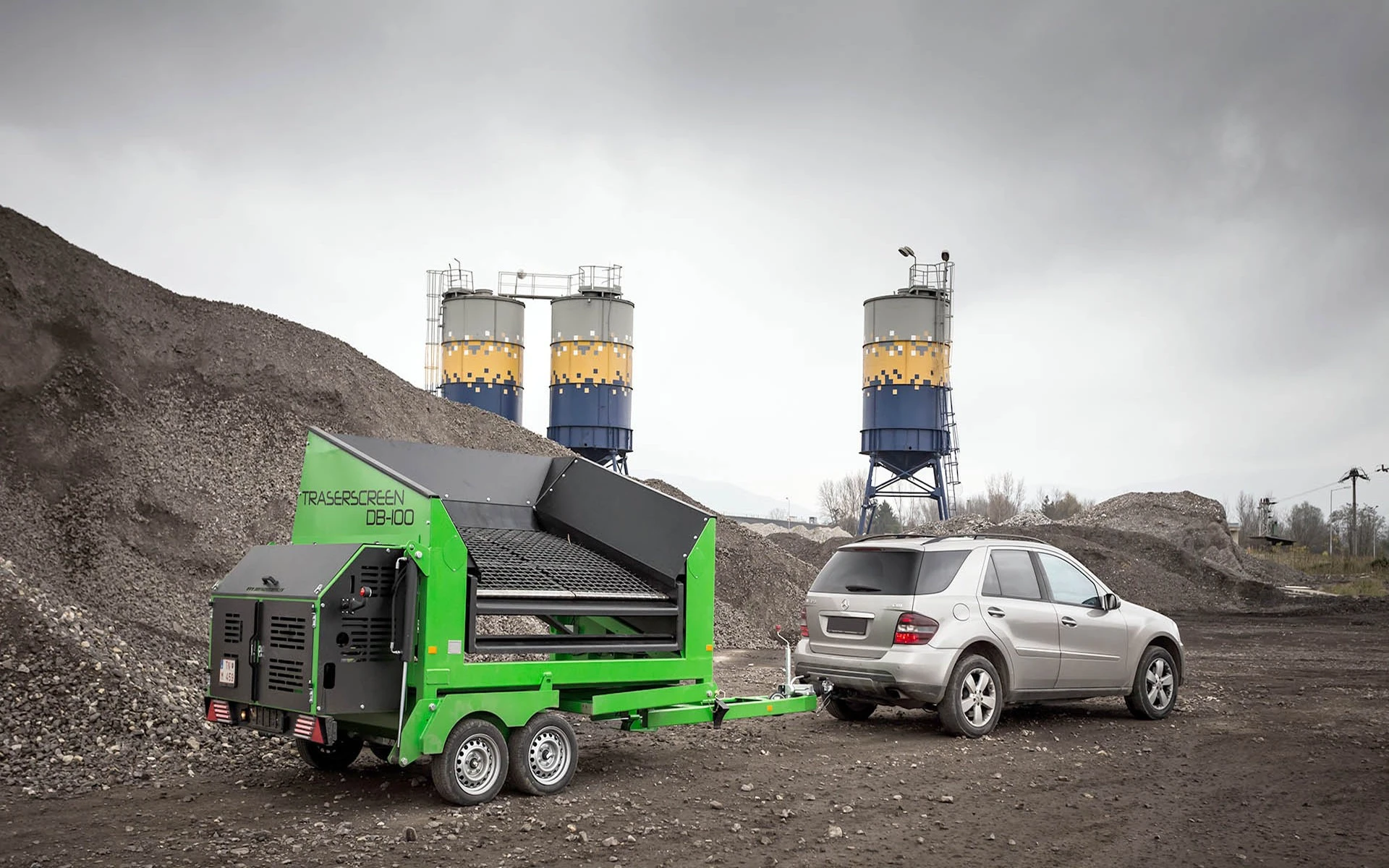

The weight of only 2,8 t allows the transformation from transport position into work position in less than 4 minutes. With this sorting machine you can go anywhere and begin with sorting right away!
RECOMMENDED ACCESSORIES
Conveyor belt PASCONVEYOR DB-80 allows you comfortable transport of loose and solid materials alike from beneath Traserscreen DB-100 in case the loader shovel is larger than the area under the hopper.
Increases the overall work productivity and efficiency, control elements and the controls themselves is very simple and the materials from which the controls are made of are designed to function well for a long time with no need for repairs.
TECHNICAL SPECIFICATIONS
Transport length …………………………… 5 950 mm
Transport width ……………………………. 2 146 mm
Transport height …………………………… 2 350 mm
Work height ………………………………… 2 870 mm
Length of the screenbox …………………… 1 820 mm
Width of the screenbox ……………………. 1 820 mm
Engine: Diesel engine with output ………….. 6,3 kW
Fuel tank capacity ………………………………. 26 l
Fuel consumption ………………………….. 2-3 l / h
Max. construction speed 100 km / h
Technical specifications come under changes with no forward warning.
12 month warranty, or 1 000 hours.
Still not convinced? Arrange a personal meeting to personally see the machine at work
SATISFIED CUSTOMERS
ABILITY OF INDIVIDUAL CUSTOMIZATION
We are well aware that you use our device in different conditions and to achieve different goal, that’s why we offer you the ability to individually customize our device to your own needs.
Static version, static version with external drive, or mobile version with electric drive are one of our already made individual customizations.
Feel free to contact us, tell us what you request and our engineering team will take care of optimal solution. Your satisfaction and long term cooperation with you is our top priority.
PRICE LIST
Traserscreen DB-100
On request
Pasconveyor DB-80
On request
Don’t want to invest in buying a new machine? Utilize the option of our favourable rent or leasing!
For more details about rent or leasing, feel free to contact us!
